Heavy-Duty
Precision Rollers
Engineered for high-volume logistics and heavy manufacturing environments where downtime isn't an option.
The AsiaRoller Series 5100 is a heavy-duty precision conveyor roller rated up to 500 kg, running Heavy 6204-RS bearings sealed to IP66. Drive options: Poly-V Belt, Single Sprocket, Double Sprocket. Made to order in Thailand and quoted per specification.

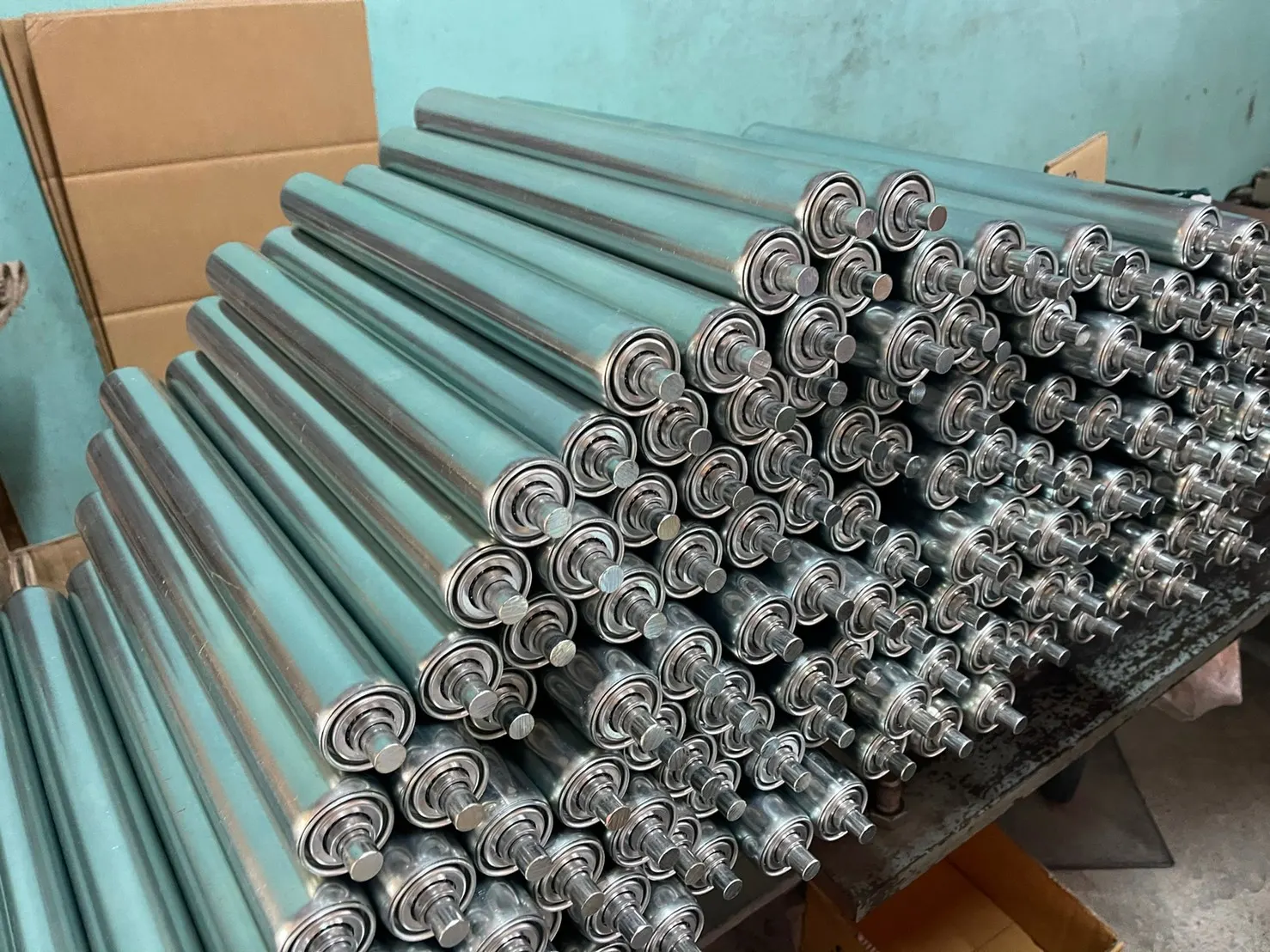

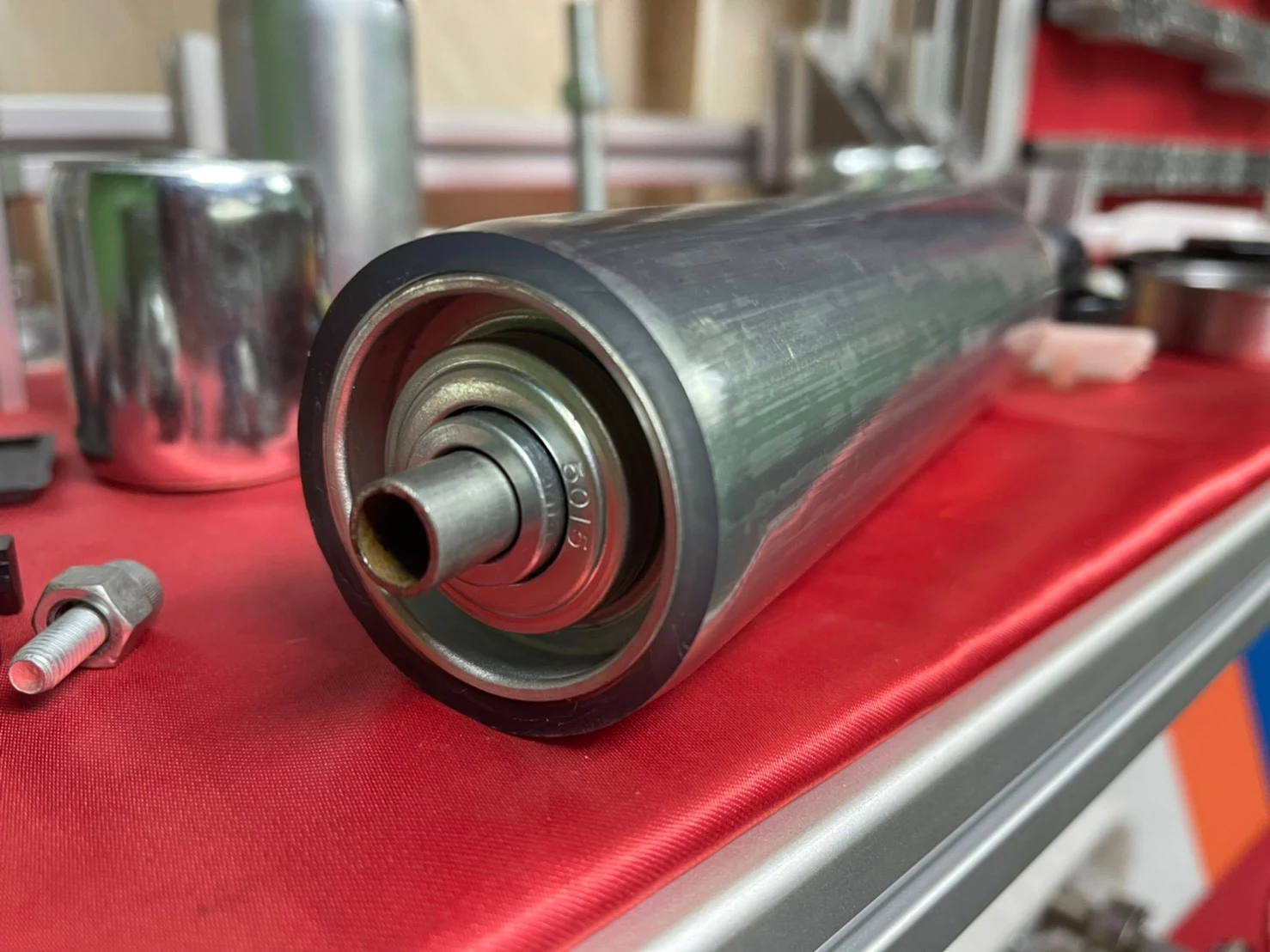

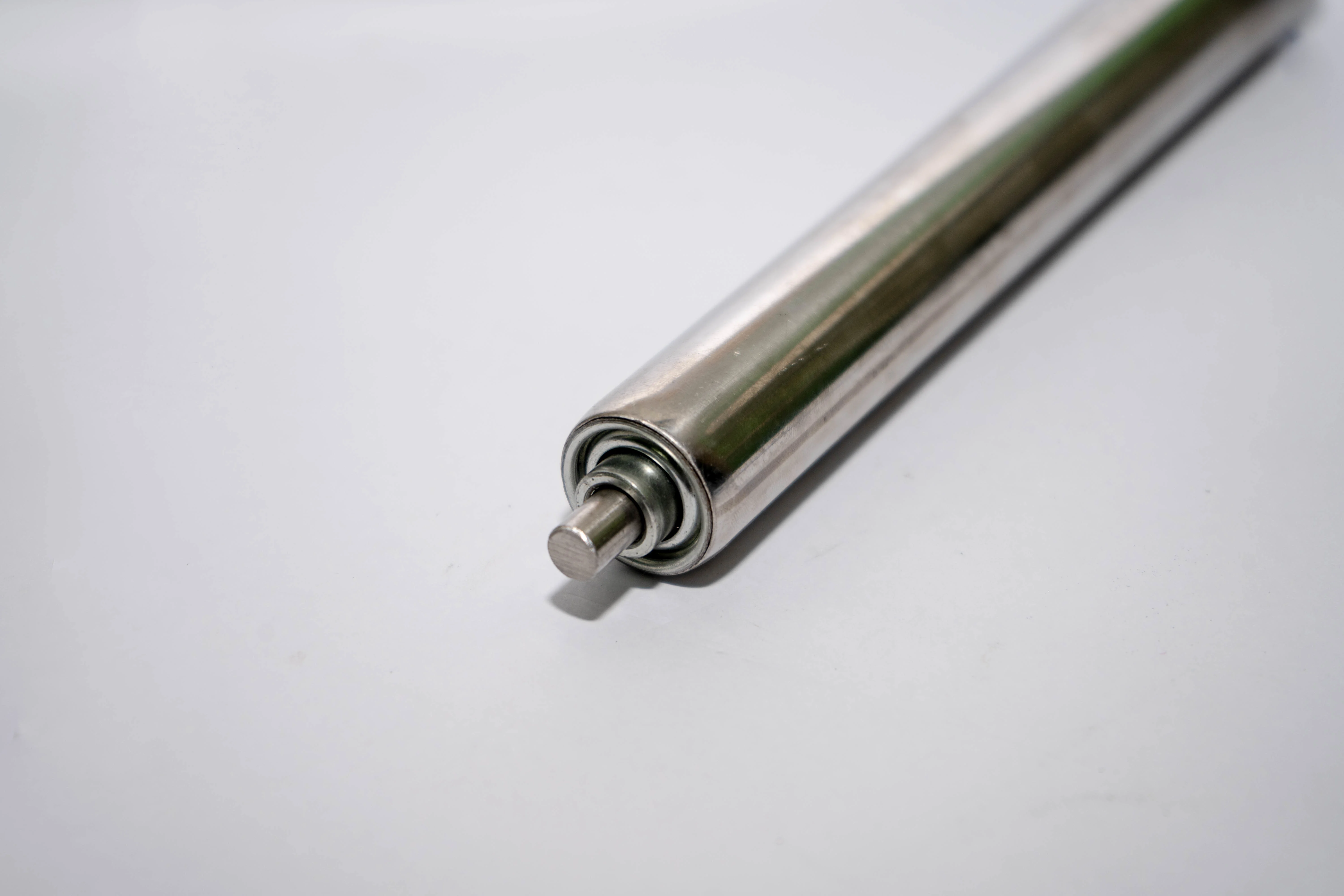

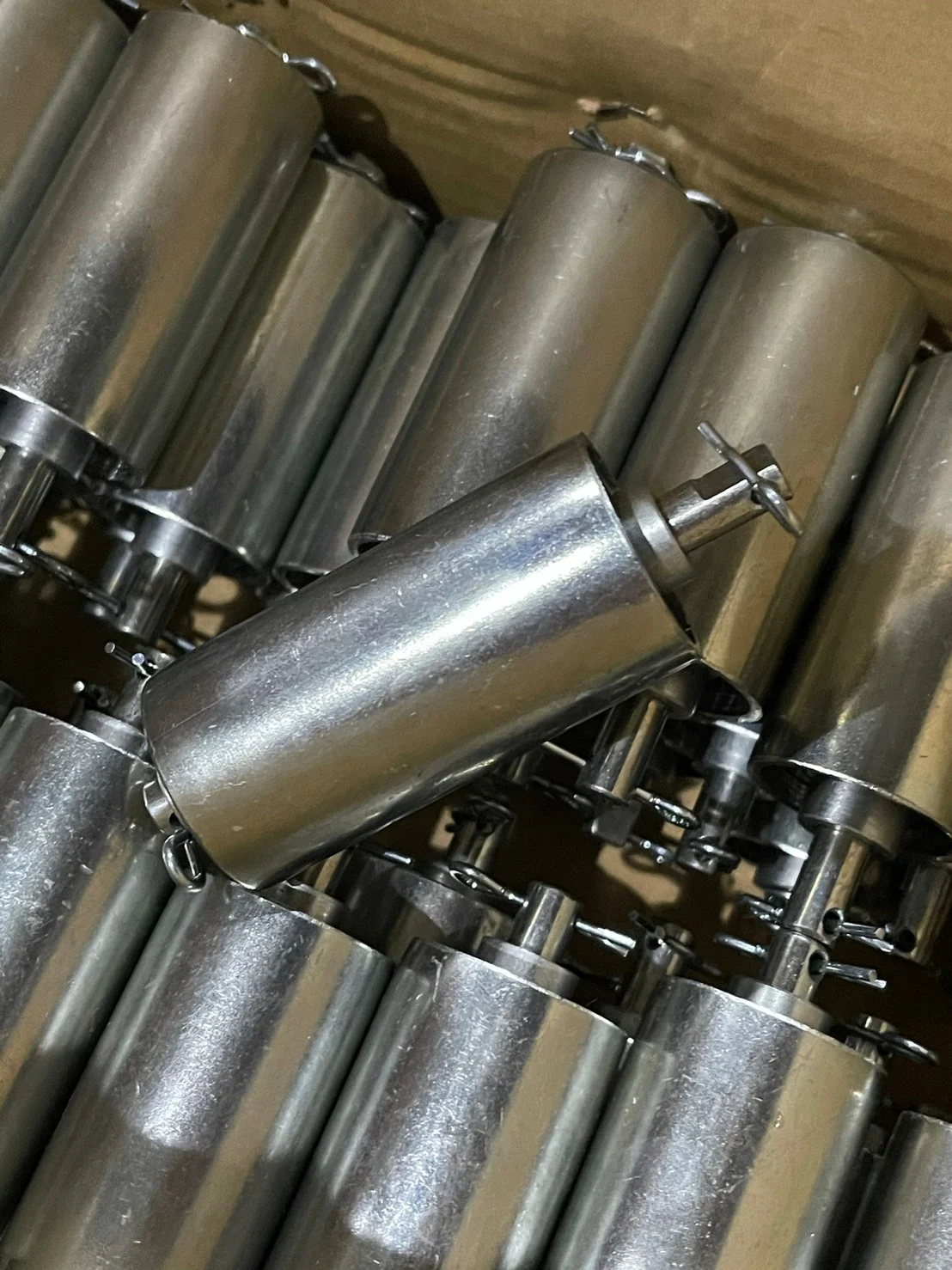

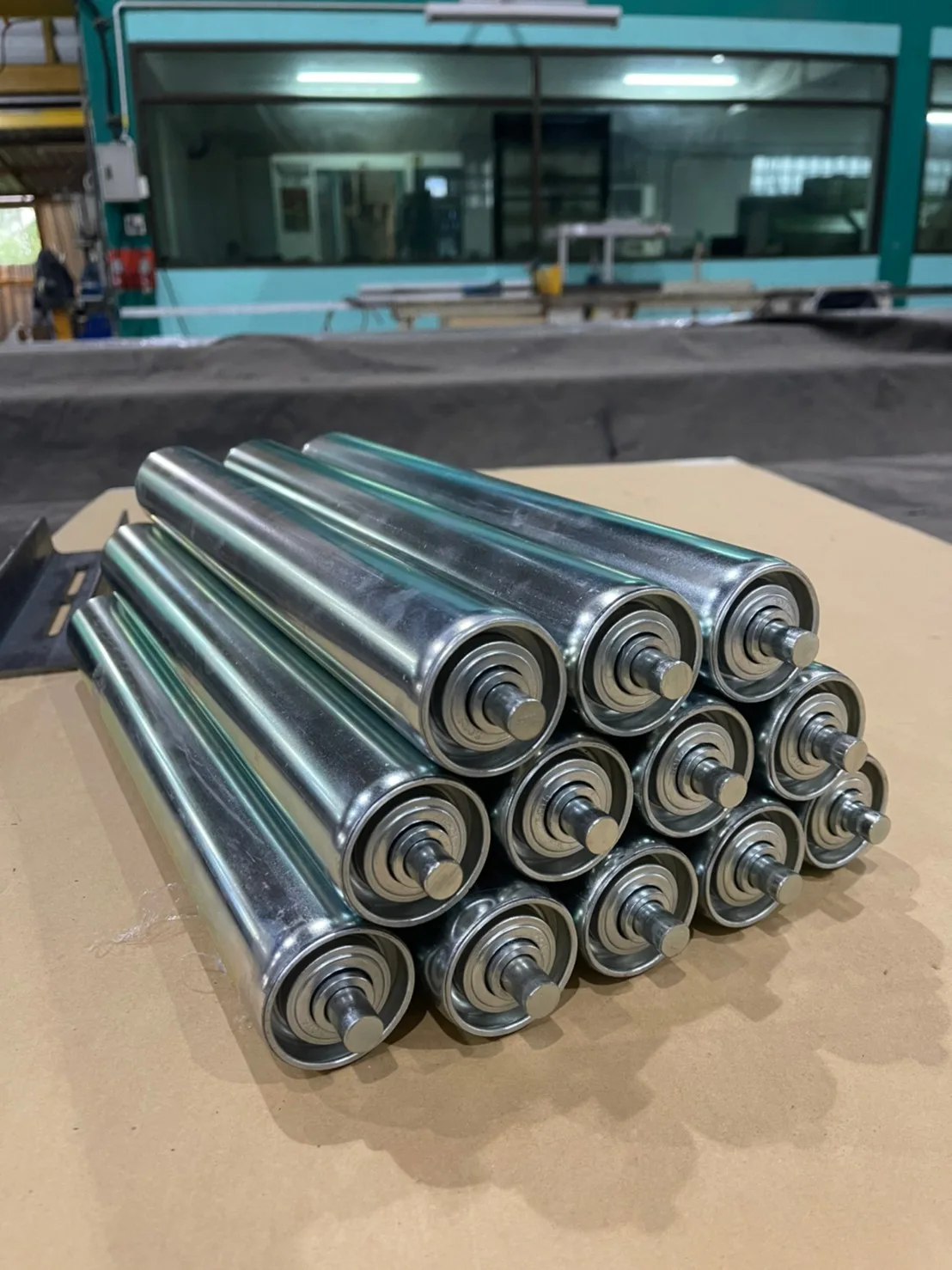

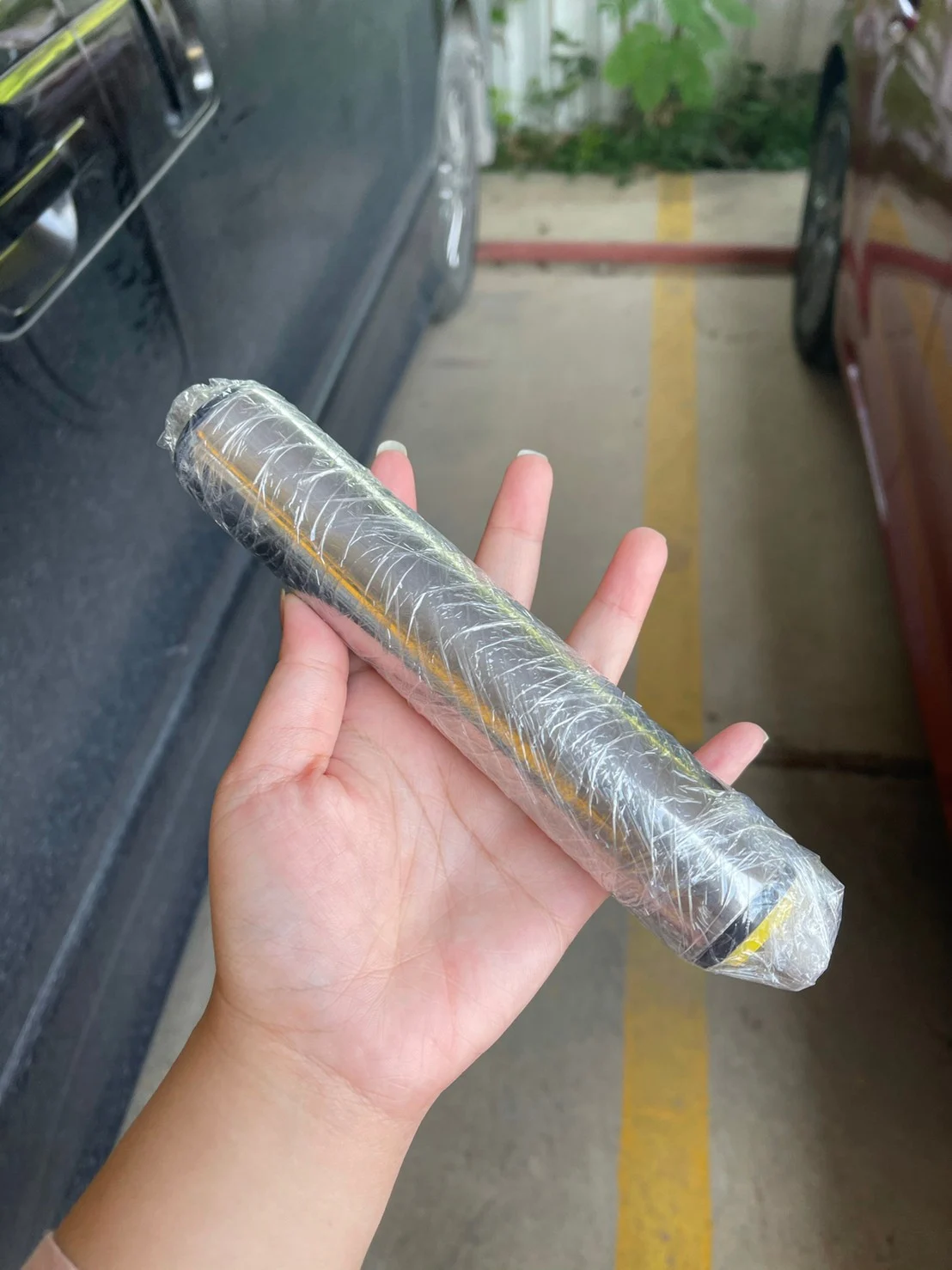

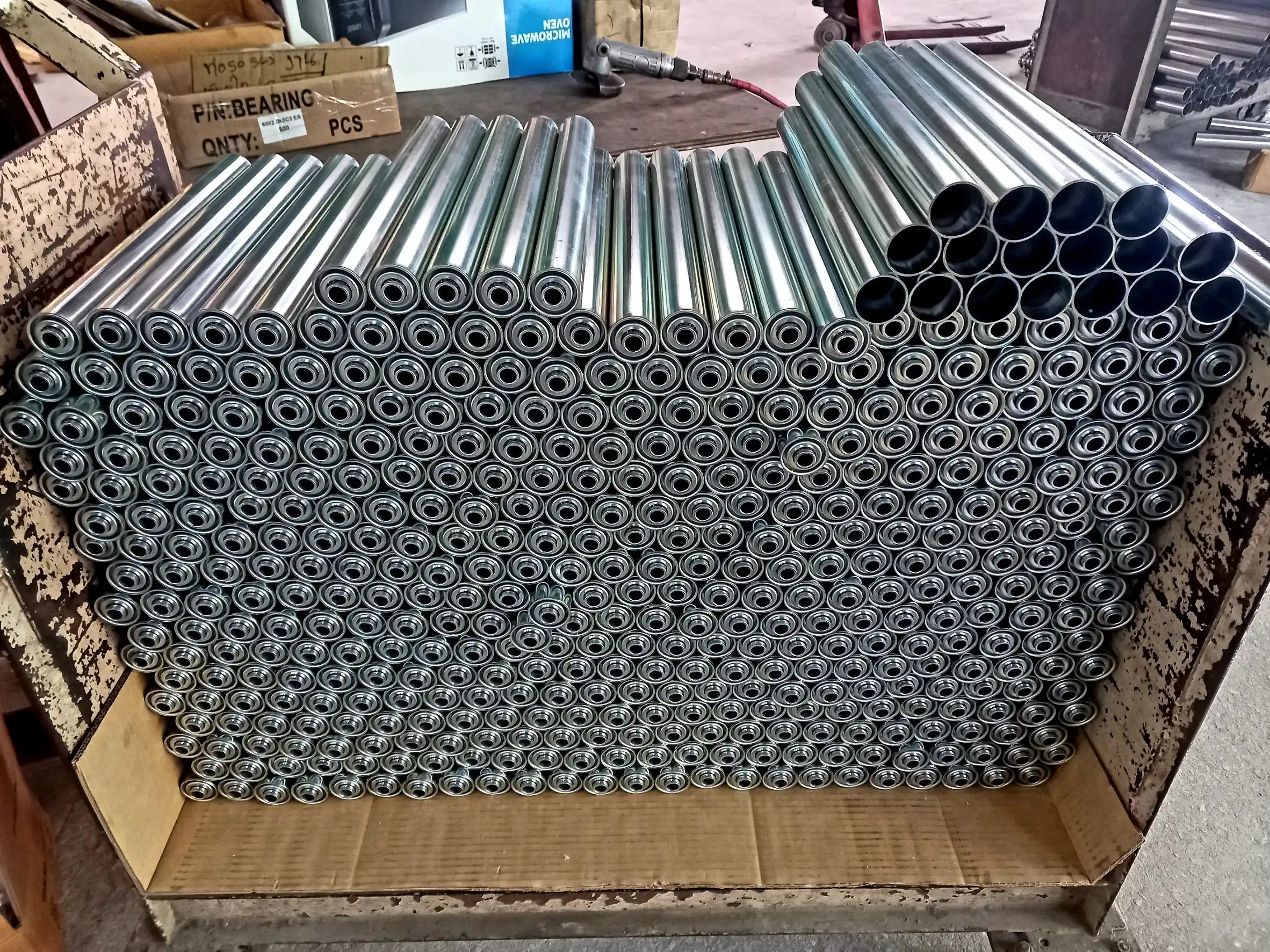

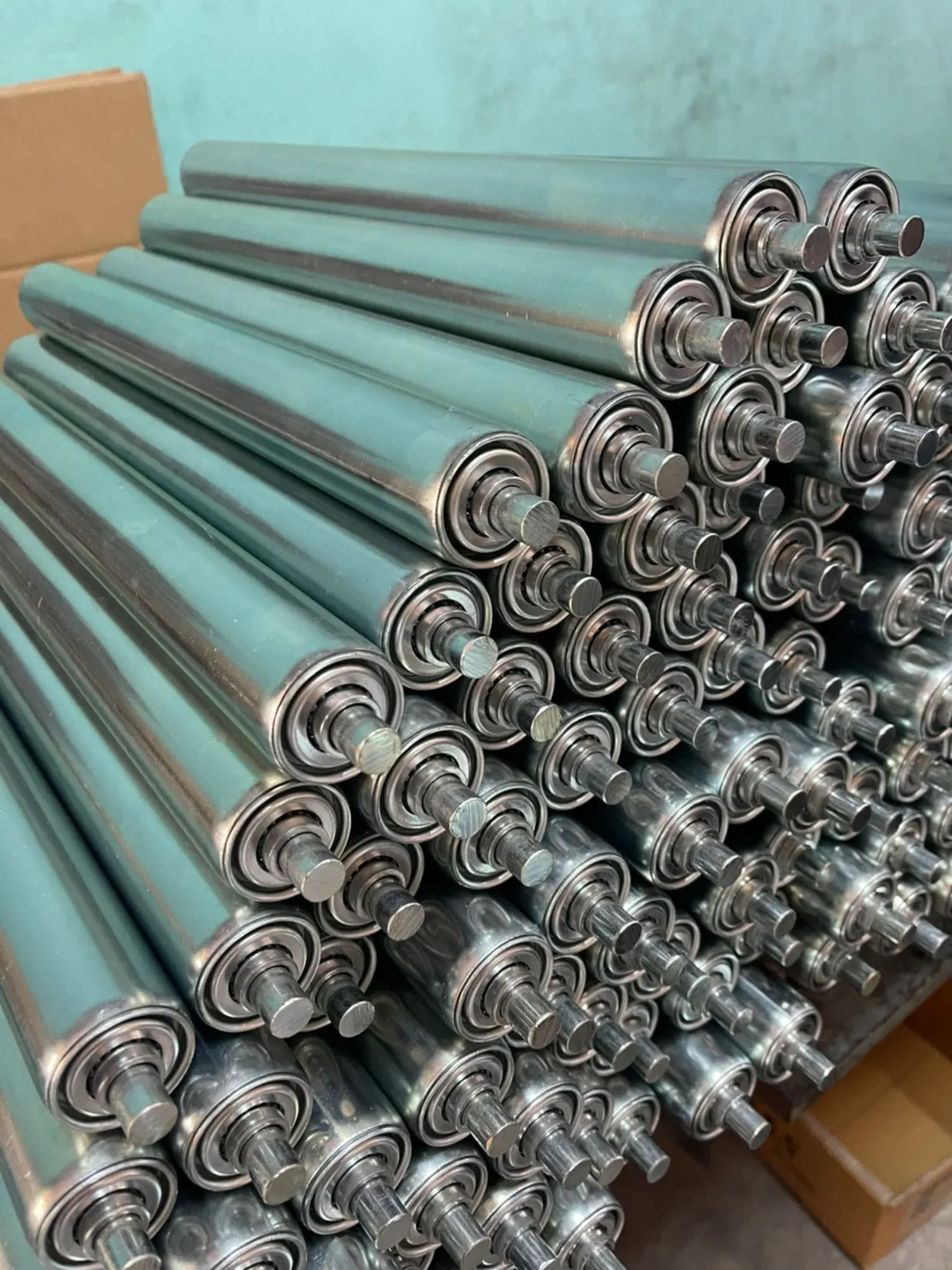

Engineering Visual Showcase

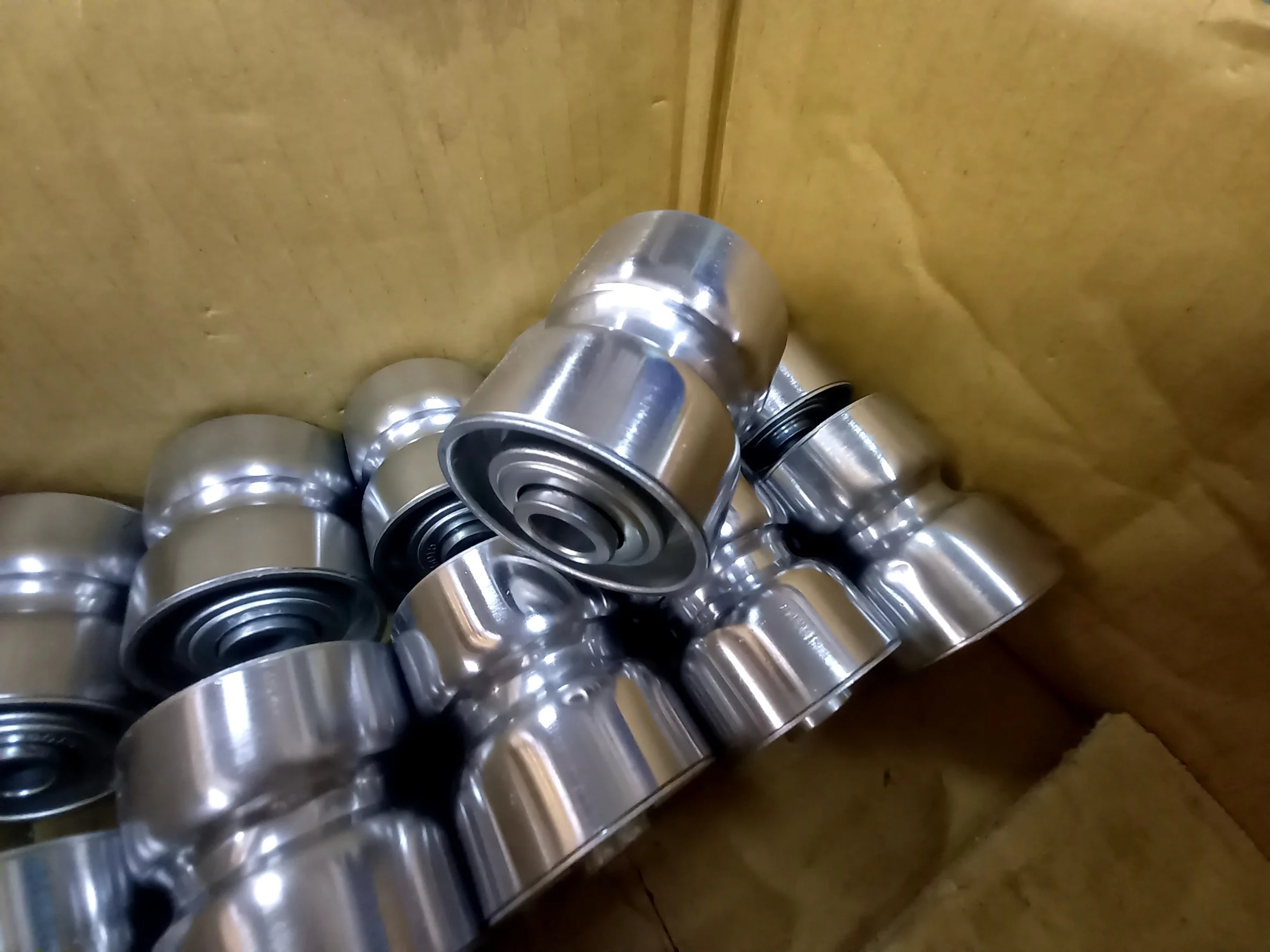

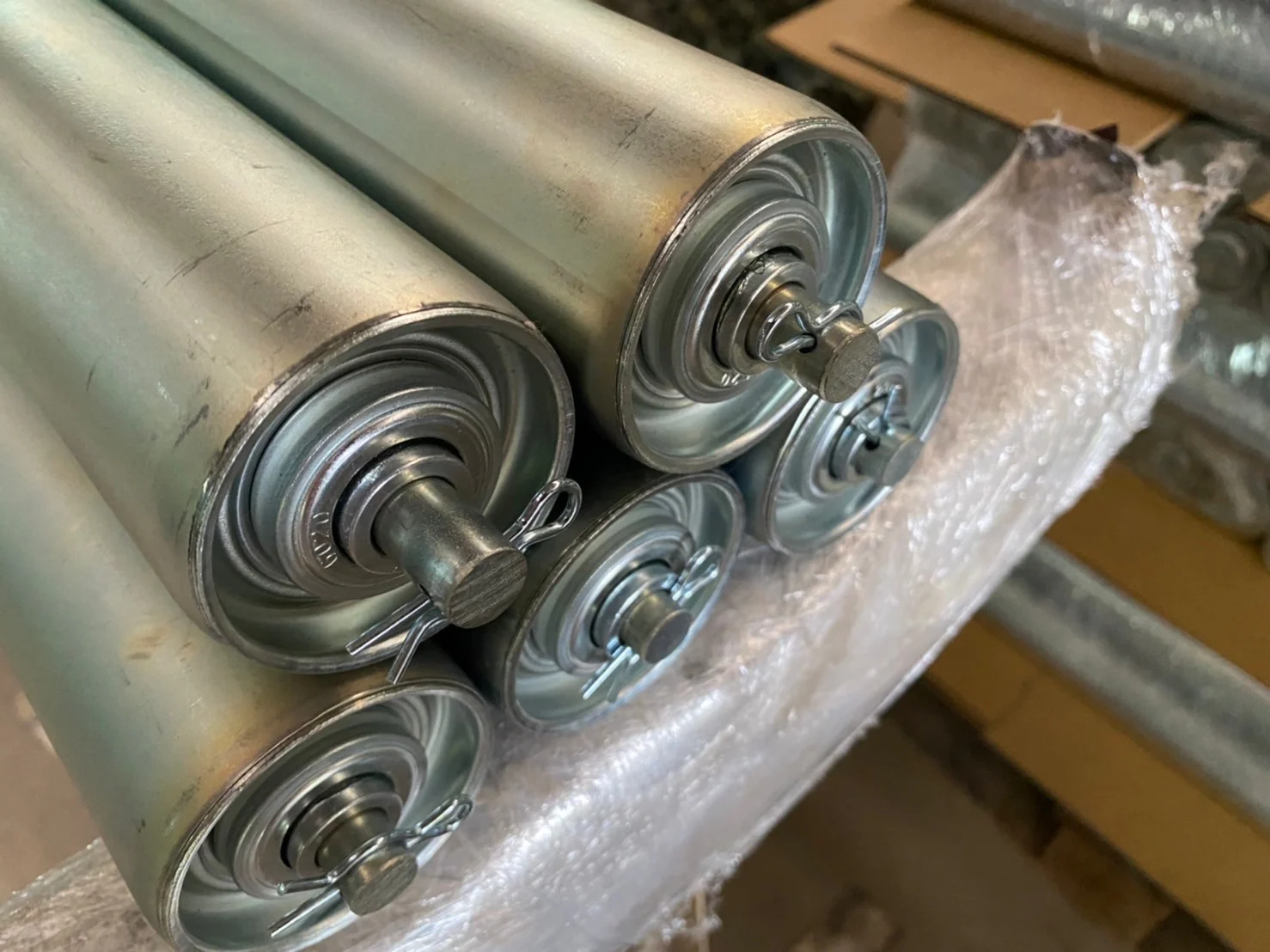

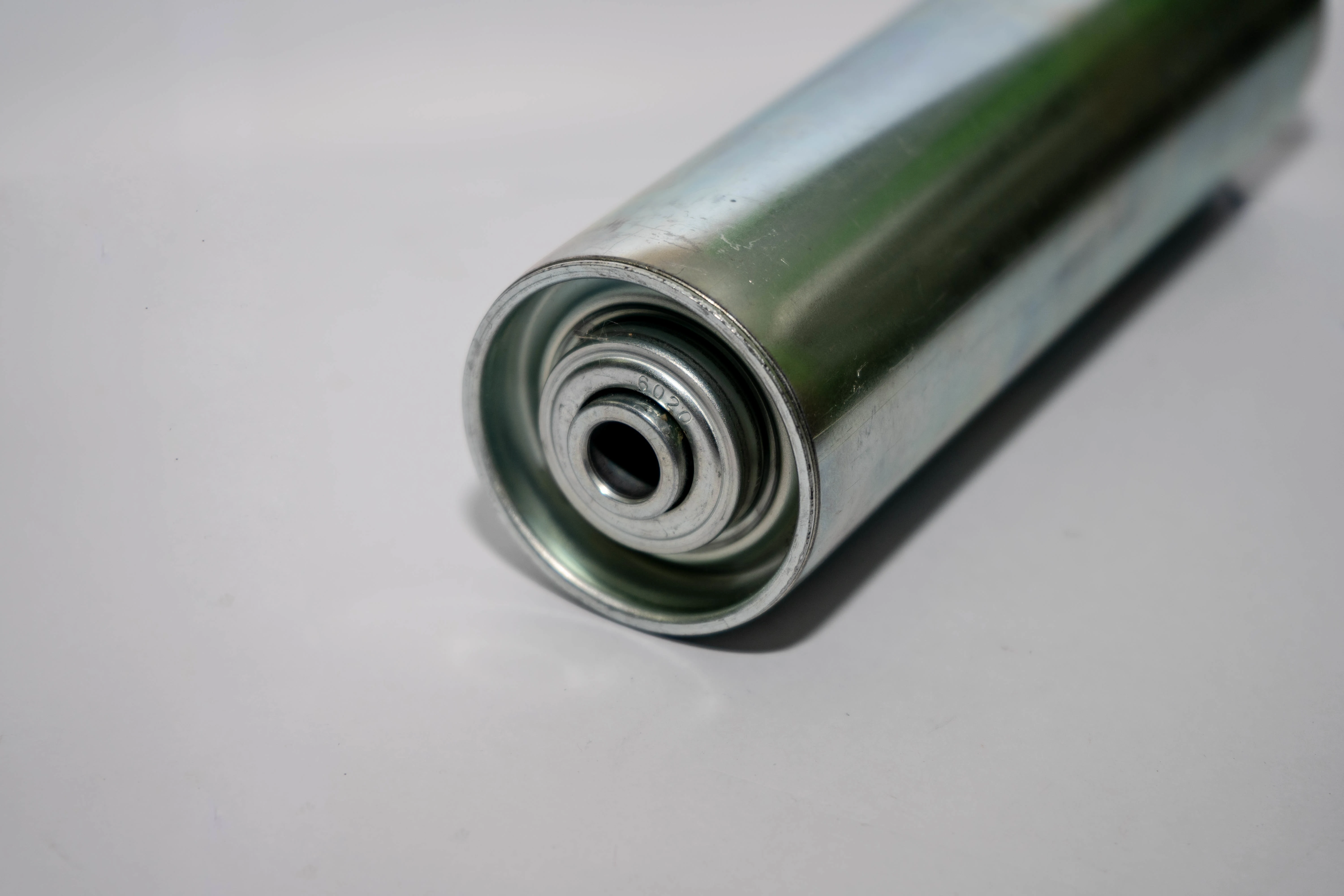

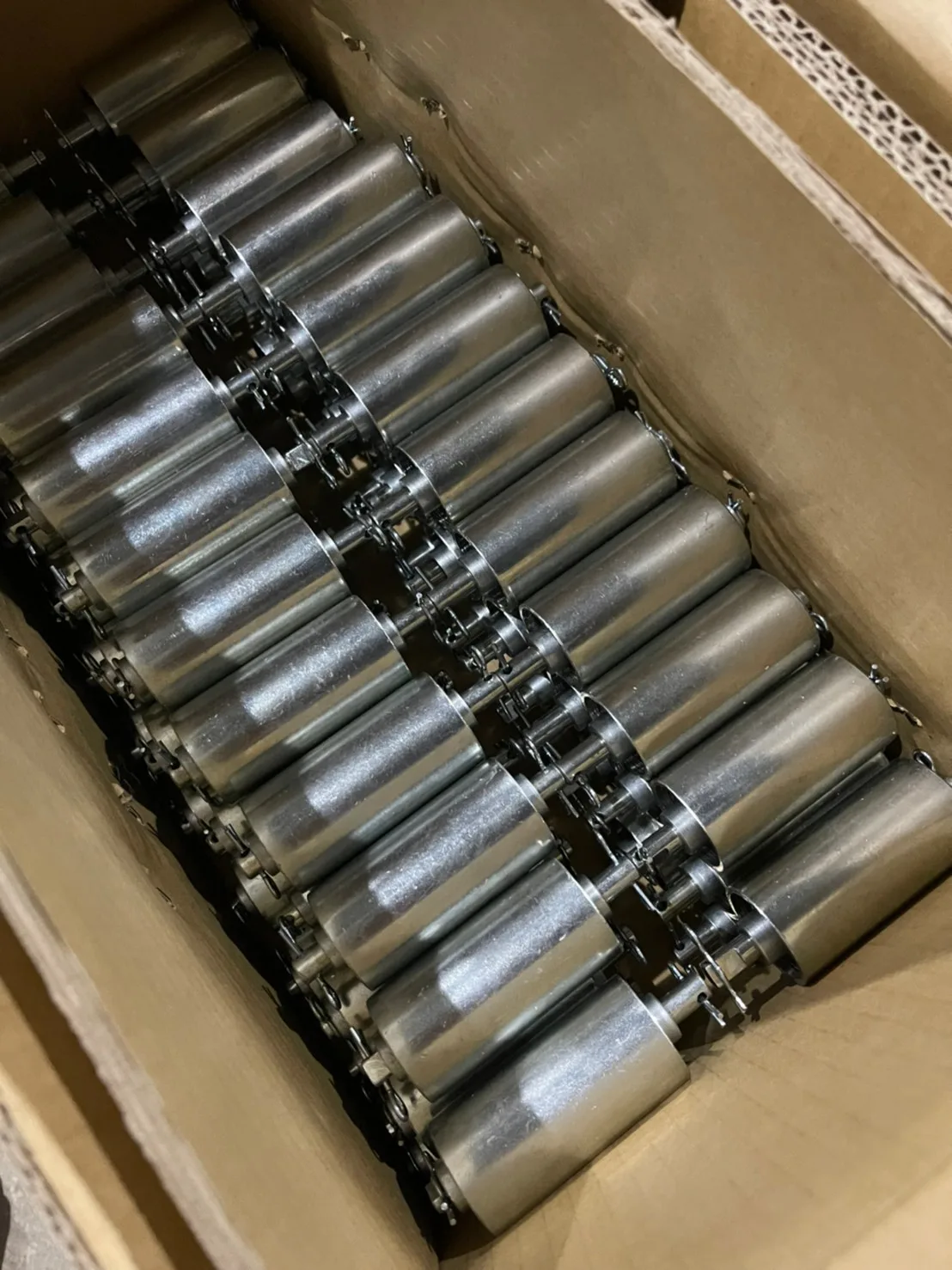

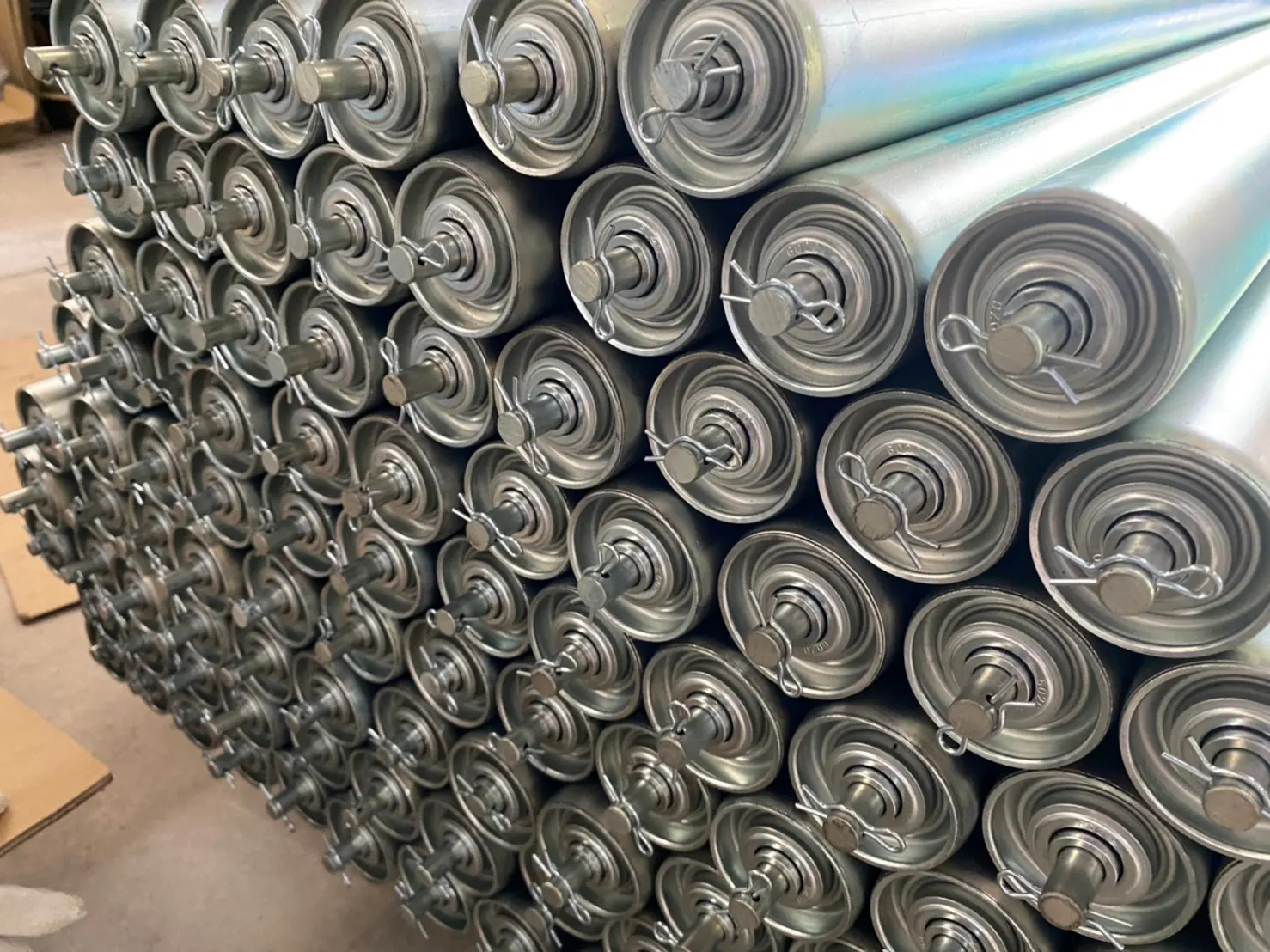

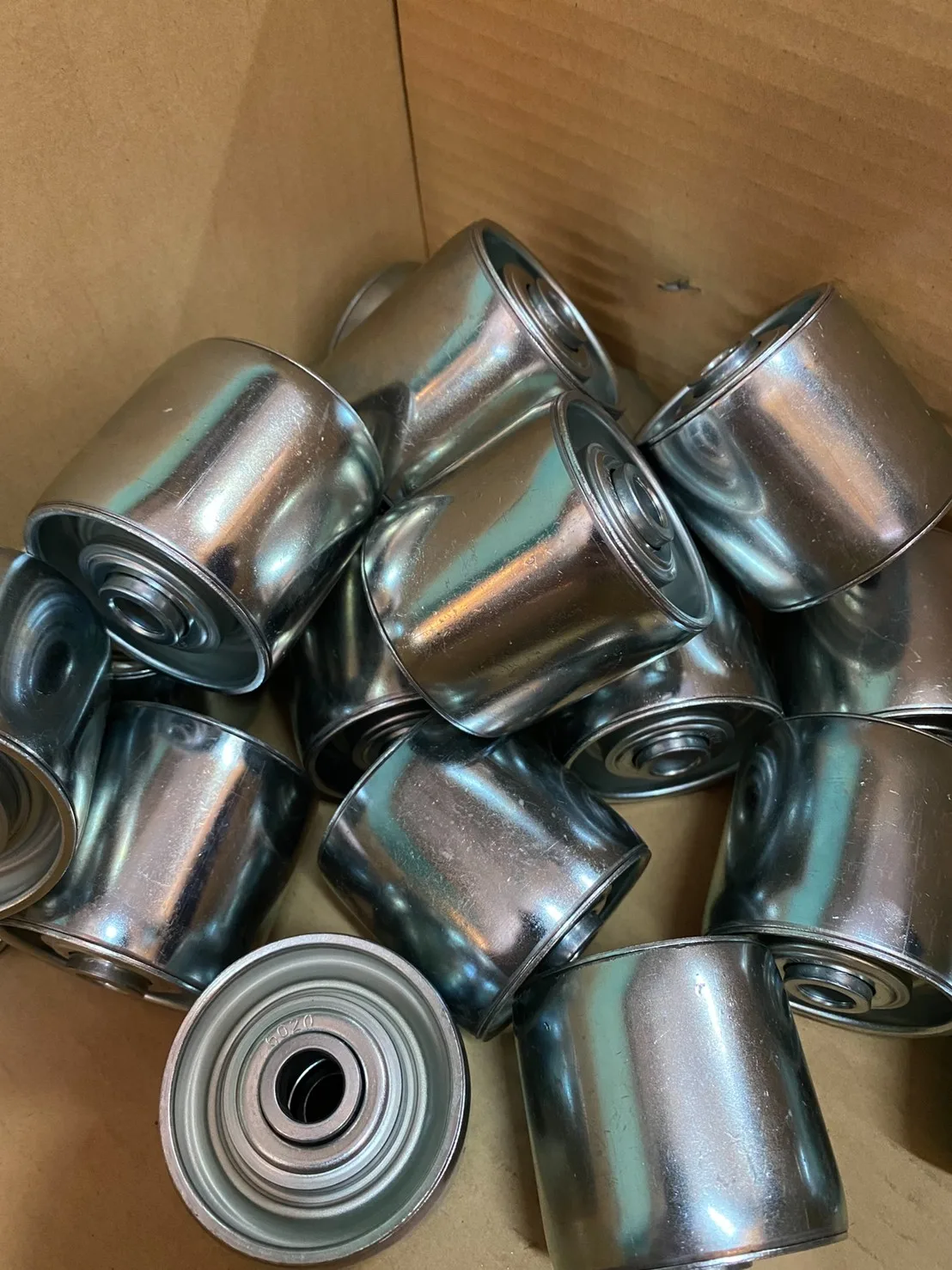

High-precision components and visual details of the Series 5100 roller.
IMG #1
IMG #2
IMG #3
IMG #4
IMG #5
IMG #6
IMG #7
IMG #8
IMG #9
IMG #10
IMG #11
IMG #12
IMG #13
IMG #14
IMG #15
Precision Component Integration
The Series 5100 is a modular system designed for longevity. Each component is machined to micron-level tolerances to ensure perfect concentricity and minimal noise.
Heavy Duty Industrial Strength
Engineered to endure the toughest warehouse, airport, and distribution center conditions.
In The Field
Real installations and production line photos from AsiaRoller customers.
Roller Assembly
AsiaRoller – Thailand
Industrial Line
AsiaRoller – Thailand
Heavy Conveyor
AsiaRoller – Thailand
Physical Dimensions
| Model Code | Tube Dia. | Max Load |
|---|---|---|
| 5100-A-50 | 50.0 mm | 120 kg |
| 5100-B-60 | 60.3 mm | 250 kg |
| 5100-C-80 | 80.0 mm | 450 kg |
| 5100-X-HD | 108.0 mm | 850 kg |
Materials & Finishing
Galvanized Steel
Zinc-plated to 12 μm for standard indoor oxidation resistance.
Stainless 304/316L
Food-grade compliance with ultra-smooth surface finish (Ra < 0.8).
Carbon Steel Black
Uncoated raw steel for high-temperature foundry applications.
Frequently Asked Questions
What is the maximum load capacity of the AsiaRoller Series 5100?
The Series 5100 conveyor roller is rated for Up to 500 kg. Individual models range from 120 kg to 850 kg per roller depending on tube diameter and wall thickness.
What bearing and seal rating does the Series 5100 use?
It uses Heavy 6204-RS bearings, sealed to IP66, with an operating temperature range of -30° to +120°C.
What drive options are available for the Series 5100?
The Series 5100 supports Poly-V Belt, Single Sprocket, Double Sprocket.
What tube materials and finishes are available for the Series 5100?
Available finishes include Galvanized Steel, Stainless 304/316L, Carbon Steel Black.
What is the maximum conveyor speed of the Series 5100?
The Series 5100 operates at line speeds up to 2.5 m/sec.
How do I get a price or quote for the Series 5100?
AsiaRoller supplies the Series 5100 on a request-for-quotation basis. Submit your specifications through the contact or quotation page for pricing, CAD files, and bulk configurations.
Ready to upgrade your infrastructure?
Connect with our engineering team for custom configurations, CAD files, and bulk pricing for the Series 5100.
Request a Quote
